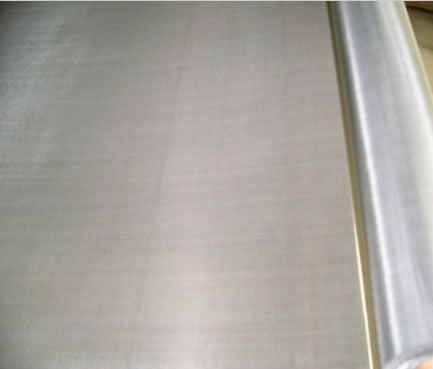

» Micronic wire cloth from Weave Style:Twill ,Plain Dutch Weave

Micron wire cloth we supply has two types: Dutch weave and square weave. Micronic (Dutch Weaves PDW and TDW) wire mesh screens are thick, strong; light-tight meshes which are used primarily in fluid, vacuum, and pressure filtration of liquids and gases. These are woven filter cloth to precise tolerances and their openings are actually tiny curved, triangular tunnels.

Micronic (Square Weaves PSW and TSW) - The square weaves (PSW, TSW) are woven with straight through square holes, are thin and flexible, and are often used in the separation and classification of solid particles. These square weaves have very high flow rates and square see through openings.

Specifications
Material: 302, 304, 304L, 306, 306L.
The standard width: 0.6m-1.5m.
The standard length: 20m, 30m.
Typical weaving patterns: plain weave, twill weave, dutch weave.
General Application: stainless steel wire mesh, with its excellent acid-resisting, alkali-resisting, heat-resisting, wear-resisting, find extensive use in processing of oils, chemicals, food, also sorting and screening of solid, liquid and gas in mine, airspace, machine making, etc.

5. Packing details: wooden box.

Opening Size

• Absolute Filtration Rating - A measure of retention, expressed in microns, that specifies the equivalent diameter of the smallest particle from which the filter has a retention of 100%. In actual practice, most manufacturers assign absolute ratings on the basis of retention in the range from 98% - 99.999999%.
• Nominal Filter Rating - A measure of retention, expressed in microns, that specifies the equivalent diameter of the smallest particle for which the filter has a retention somewhere in the range of 60-90%. Nominal filter rating is imprecise.
